示波器专用探头

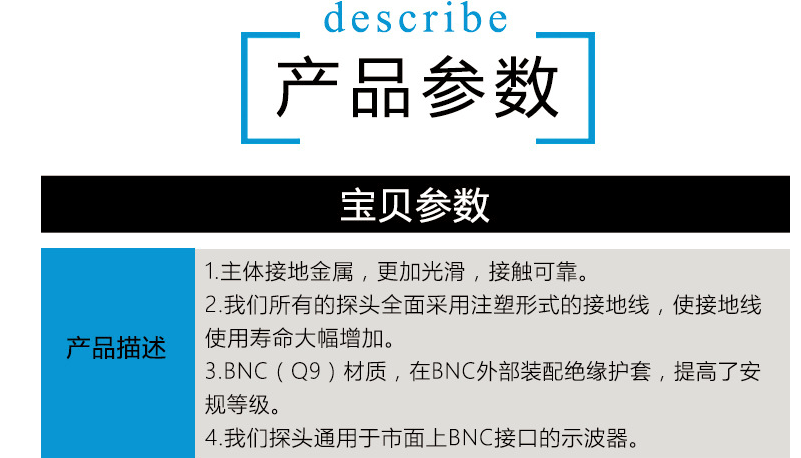

- 产品介绍

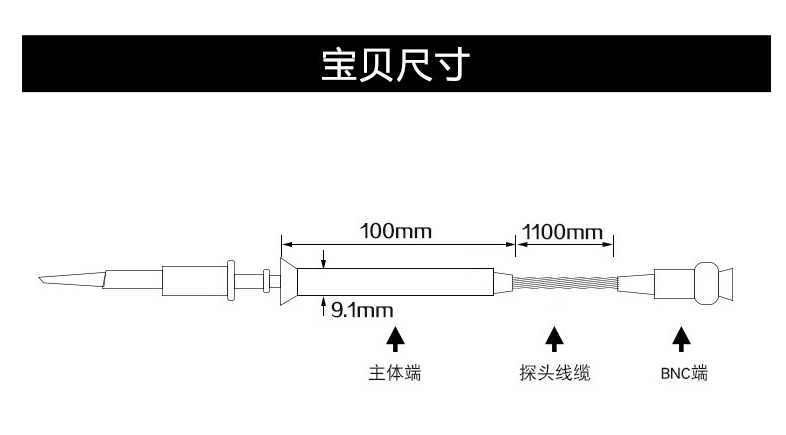

- 产品尺寸
P6100 60MHz示波器探头 欧标
|
型号 |
P6100 欧标 |
|
衰减比 |
1X/10X转换 |
|
输入电阻 |
1MΩ/10MΩ |
|
输入电容 |
1X:85pF~120pF |
|
|
10X:18.5pF~22.5pF |
|
补偿范围 |
15pF~45pF |
|
系统带宽 |
1X:DC-6MHz |
|
|
10X: DC-60MHz |
|
输入电压 |
1X:＜300VDC + AC Vp-p |
|
|
10X:＜600VDC+ AC Vp-p |
|
工作温度范围 |
-15℃~+75℃ |
|
未工作温度范围 |
-20℃~+60℃ |
|
工艺 |
注塑一体化 |
|
颜色 |
黑色 |
|
净重 |
60g |
|
电缆长度 |
120cm |
|
湿度 |
≤85%（相对湿度） |
|
操作手册 调节工具，调节补偿电容，以确保与示波器相匹配 收缩型附件钩 12厘米长接地线与鳄鱼夹 3对彩色标记色环 适用于IC测试的定位帽 维修服务：非人为损坏，免费保修一年 |
|
|
型号 |
P6100 |
|
衰减比 |
1X/10X转换 |
|
输入电阻 |
1MΩ/10MΩ |
|
输入电容 |
1X:85pF~120pF |
|
10X:14pF~18pF |
|
|
补偿范围 |
15pF~45pF |
|
系统带宽
|
1X:DC-6MHz |
|
10X:DC-60MHz |
|
|
输入电压
|
1X:＜300VDC + AC Vp-p |
|
10X:＜600VDC+ AC Vp-p |
|
|
工作温度范围 |
-15℃~+75℃ |
|
存储温度 |
-20℃~+60℃ |
|
上升时间 |
2.3ns |
|
工艺 |
注塑一体化 |
|
颜色 |
黑色 |
|
净重 |
55g |
|
电缆长度 |
110cm |
|
湿度 |
≤85%（相对湿度） |
|
操作手册 调节工具，调节补偿电容，以确保与示波器相匹配 收缩型附件钩 12厘米长接地线与鳄鱼夹 4对彩色标记色环 配备接地弹簧 适用于IC测试的定位帽 维修服务：非人为损坏，免费保修一年 |
|
